3rd Gen 4Runner / Hilux Surf Drivetrain Skid Plate Kit

Toyota 4Runner

1996-2002

Toyota Toyota 4Runner CO0731

ID product: 1619

NZD$ 827.40

Choose
your variation

  • Material
      Choose an option

    • 3/16" Steel

      Price: + NZD$ 0.00

    • Aluminum

      Our aluminum bumpers are constructed out of ¼” thick 5052 aluminum. Aluminum provides great corrosion resistance and substantial weight savings over steel. While it is still very strong and durable, it will sustain dents and scratches easier than steel if you like to play hard in the rocks

      Price: + NZD$ 885.94

NZD$ 827.40 NZD$ 827.40 827.4 NZD

CAD$ 630.40

Add to Cart
"3rd Gen 4Runner / Hilux Surf Drivetrain Skid Plate Kit" has been added to your cart.
View cart

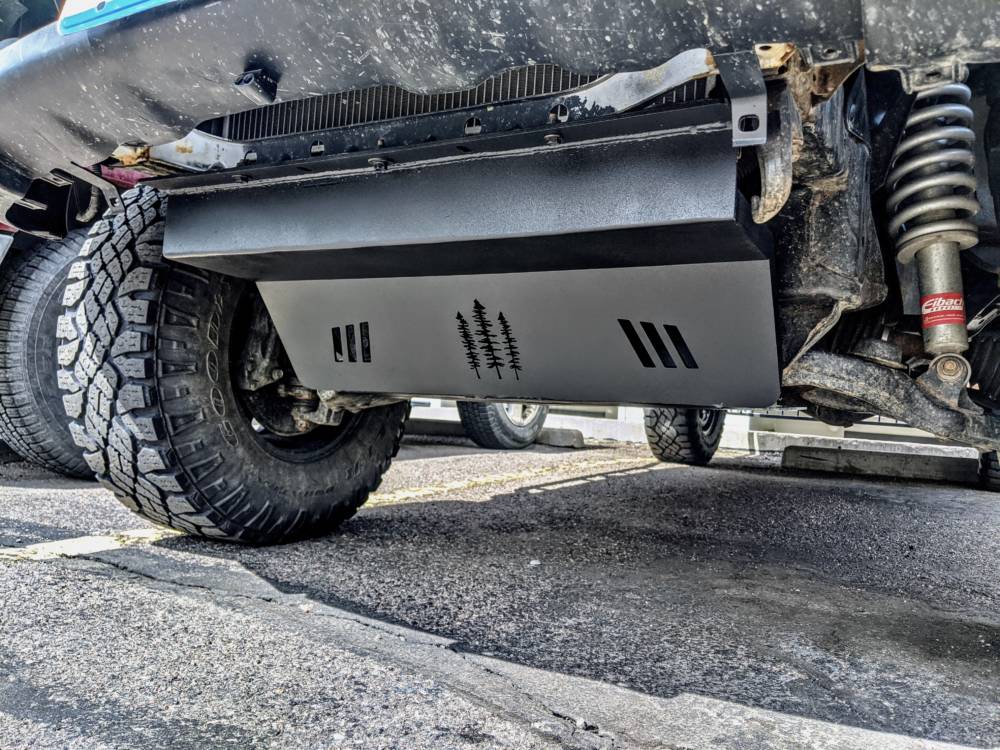

This is a drivetrain skid plate DIY weld-together kit for the 3rd generation (1996-2002) Toyota 4Runner. This 2-piece set mounts using all factory mounting points (no drilling required) and provides excellent protection of the radiator, front differential, engine oil pan, steering rack, transmission and transfer case. To maximize ground clearance, we use a dual angle front plate that tucks in as close to the frame as possible, providing the best approach angle of any skid plate set on the market. We've used a dual-wall construction at the highest impact area as well as multiple ribs that run the length of the skid set. These features make these skid plates drastically stronger than other skid plates on the market which are simply bent into shape with little to no reinforcements and inadequate mounts.


  • DIY Weld-together kit - This skid plate set arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

  • Complete 2-piece set that provides excellent protection of the radiator, front differential, engine oil pan, steering rack, transmission and transfer case

  • Coastal Offroad Tree Logo Cut into front skid plate

  • Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

  • Optional 1/4" 5052 aluminum construction for a lightweight yet very durable overlanding setup (40lb weight savings)

  • Maximum approach angle - front plate tucks up as tight to the frame as possible

  • Front plate bolts directly to frame using 9 factory mounting points - no drilling required

  • Rear plate bolts directly to frame using 8 factory mounting points- no drilling required

  • Oil drain hole allows for oil changes without skid plate removal

  • All kits ship as clean, bare metal that is ready to weld out of the box - the Nitrogen laser cutting technology means no cutting edge oxidation and thus easier and stronger welds

3rd Gen 4Runner / Hilux Surf Drivetrain Skid Plate Kit

Toyota 4Runner

1996-2002

NZD$ 827.40

ID product: 1619

1996-2002

1619
3rd Gen 4Runner / Hilux Surf Drivetrain Skid Plate Kit
3rd Gen 4Runner Drivetrain Skid Plate Kit 1
3rd Gen 4Runner Drivetrain Skid Plate Kit 2
3rd Gen 4Runner Drivetrain Skid Plate Kit 3
3rd Gen 4Runner Drivetrain Skid Plate Kit 4
3rd Gen 4Runner Drivetrain Skid Plate Kit 5
3rd Gen 4Runner Drivetrain Skid Plate Kit 6
3rd Gen 4Runner Drivetrain Skid Plate Kit 7
3rd Gen 4Runner Drivetrain Skid Plate Kit 8
Shop 1996-2002 4Runner Hilux Surf 1996-2002 3rd Gen 4Runner / Hilux Surf Drivetrain Skid Plate Kit

3rd Gen 4Runner / Hilux Surf Drivetrain Skid Plate Kit

Toyota 4Runner 1996-2002

NZD$ 827.40

ID product: 1619

description additional information skid plate weight
description

This is a drivetrain skid plate DIY weld-together kit for the 3rd generation (1996-2002) Toyota 4Runner. This 2-piece set mounts using all factory mounting points (no drilling required) and provides excellent protection of the radiator, front differential, engine oil pan, steering rack, transmission and transfer case. To maximize ground clearance, we use a dual angle front plate that tucks in as close to the frame as possible, providing the best approach angle of any skid plate set on the market. We've used a dual-wall construction at the highest impact area as well as multiple ribs that run the length of the skid set. These features make these skid plates drastically stronger than other skid plates on the market which are simply bent into shape with little to no reinforcements and inadequate mounts.


  • DIY Weld-together kit - This skid plate set arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

  • Complete 2-piece set that provides excellent protection of the radiator, front differential, engine oil pan, steering rack, transmission and transfer case

  • Coastal Offroad Tree Logo Cut into front skid plate

  • Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

  • Optional 1/4" 5052 aluminum construction for a lightweight yet very durable overlanding setup (40lb weight savings)

  • Maximum approach angle - front plate tucks up as tight to the frame as possible

  • Front plate bolts directly to frame using 9 factory mounting points - no drilling required

  • Rear plate bolts directly to frame using 8 factory mounting points- no drilling required

  • Oil drain hole allows for oil changes without skid plate removal

  • All kits ship as clean, bare metal that is ready to weld out of the box - the Nitrogen laser cutting technology means no cutting edge oxidation and thus easier and stronger welds

Read more
additionnal information
Material
Aluminum (+675) | 3/16" Steel
Skid plate weight

3/16″ Steel set weight: 126lbs

1/8″ steel set weight: 84lbs

1/4″ aluminum set weight: 61lbs
