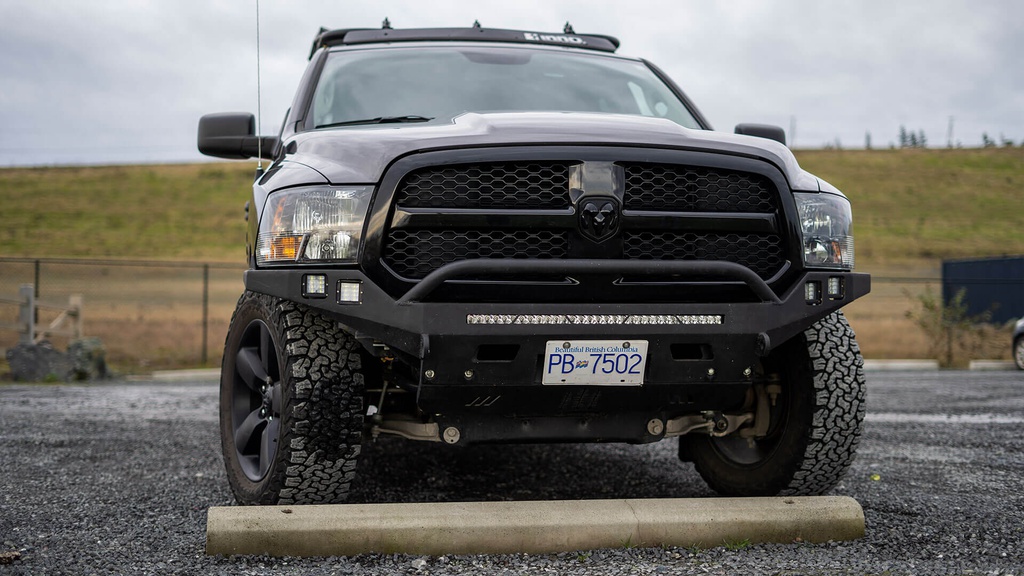

4TH GEN DODGE RAM 1500 FRONT BUMPER KIT

This is a high clearance DIY weld-together bumper kit for the 4th generation (2009-2018) Dodge Ram 1500. It features a low profile design, fully bolt-on construction, protected winch mount and the best approach angle on the market. The high clearance design makes your Ram look more aggressive by showing off your front suspension and tires. In addition, this bumper frees up a ton of space in your front wheel wells and allows you to run 37" tires without any bumper interference! This bumper allows you to forget about approach angle and substantially improves the offroad capability of your Ram. It offers excellent protection from rocks, trees and animal strikes and has been kept to a very reasonable weight of 94lbs (or 47lbs in aluminum) through careful design work. This means less stress on your suspension and drivetrain components.

This bumper uses a total of 8 factory mounting points to solidly mount it to the frame and is available with an optional integrated skid plate for even more protection and strength. The mounting system distributes impact and winching forces evenly across your frame and makes for the stiffest mounting interface of any bumper on the market. This bumper also uses a low profile design that tucks tightly to the body and slopes up directly from the end of the frame. This results in maximum ground clearance and approach angles that will let you take lines on the trail that weren't previously possible.

The optional lower skid plate protects your vulnerable radiator and engine bay parts and provides even more additional ground clearance compared to the flimsy stock skid plate. It has CNC cut outs that improve airflow to the radiator as well as raised sides that stiffen the skid plate and prevent debris from entering the engine bay from the sides.

In addition to the winch mount that accepts all standard 8-12,000lb winches, this bumper comes with 4 locations to mount 3x3" surface mount LED pod lights as well as a center cut out sized to fit all 30" single row light bars. All of these lighting mounts come with slotted mounting tabs that give a ton of adjustability to fit a wide range of different lights. The recovery points are recessed into the bumper and placed as close as possible to the front of each frame rail. This directs pulling forces into the frame and eliminates the leveraging effect that traditional recovery points can put on the bumper and frame due to how far away they are from the frame. The way that our recovery points are situated makes them much stronger than their thickness may suggest. And since they are recessed, they eliminate the catching points that traditional recovery lugs can become.

• DIY Weld-together kit - This bumper arrives as precision CNC-laser cut pieces that you then weld together (detailed assembly instructions included)

• Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - this bumper protrudes less than 2" from the center of the grill!

• Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

• Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (47lb weight savings)

• Bolts directly to frame using a total of 8 factory mounting points - no drilling required

• Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids

• Integrated 9/16" thick clevis mounts maximize clearance and allow the use of ¾” D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

• Four Integrated LED pod mounts – slotted mounting tabs give tons of adjustment to fit just about any 3x3 surface mount pod light

• 30" Single Row Light bar cut out - slotted mounting tabs included

• Pre-drilled to mount front license plate

• Optional heavy duty grill and headlight tubing for added protection
