R51 Nissan Pathfinder High Clearance Rear Bumper Kit

Nissan Pathfinder R51

Nissan

Nissan Nissan Pathfinder R51 CO43920

ID product: 1711

NZD$ 1,110.77

Choose
your variation

  • Body Lift Adjustment (NOT suspension lift)
      Choose an option
    • 1" Body Lift

      The 1" body lift option is only for if you have a 1" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + NZD$ 42.00

    • 2" Body Lift

      The 2" body lift option is only for if you have a 2" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + NZD$ 85.31

    • 3" Body Lift

      The 3" body lift option is only for if you have a 3" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + NZD$ 111.56

  • Cree LED Lights
      Choose an option
    • Two 24W Cree LED Pod Lights

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + NZD$ 115.50

    • Two 40W Cree LED Pod Lights

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + NZD$ 156.19

    • Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + NZD$ 164.06

    • Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + NZD$ 207.38

  • Material
      Choose an option
    • Steel

      Our steel bumpers are constructed out of 3/16” thick P&O hot rolled steel, NOT cheaper mild steel. Compared to aluminum, steel provides high strength and durability and is easier to weld. It also comes in at a pricepoint much lower than aluminum

      Price: + NZD$ 0.00

    • Aluminum

      Our aluminum bumpers are constructed out of ¼” thick 5052 aluminum. Aluminum provides great corrosion resistance and substantial weight savings over steel. While it is still very strong and durable, it will sustain dents and scratches easier than steel if you like to play hard in the rocks

      Price: + NZD$ 1,437.19

  • Rear Quarter Protection Hoops
      Choose an option
    • No

      If you select this option, your bumper will not come with any rear quarter hoops

      Price: + NZD$ 0.00

    • Yes

      This option adds 1.66x0.125" wall CNC-bent round tubing rear quater hoops to your rear bumper. These provide functional protection to the vulnerable rear quarter panels of your vehicle. They can also be used to mount additional lights or act as a step for accessing roof racks.

      Price: + NZD$ 144.38

  • Swing Out Carrier
      Choose an option
    • Dual Swing Out Carrier with Dual Gas Can Holder

      This option gives you two swing arms with space to mount a full size spare tire, hilift jack, and two 20L NATO gas cans. The gas can holder is lockable and is included with this option. The swing out arms use a 2/3 – 1/3 split to maximize gear-mounting options. Please see our "Rear Swing Out" FAQ section for more details on our Swing Out product options.

      Price: + NZD$ 1,450.31

    • Single Swing Out Carrier

      This option gives you a single swing arm with space to mount a full size spare tire and tabs suitable for mounting a hilift jack and other recovery gear. This swing arm spans roughly 2/3 of the width of the rear hatch/ tailgate. This option does not include our dual gas can holder.

      Price: + NZD$ 853.13

  • Recessed Hitch Receiver
      Choose an option
    • No

      "If you select this option, your bumper will not come with any hitch receiver. Most of our bumpers are designed with flat bottoms to maintain compatibility with the factory hitch receiver but some models may lose significant ground clearance (please confirm with us for your specific vehicle model) "

      Price: + NZD$ 0.00

    • Yes

      This option refers to a weld-in 2” hitch receiver. This hitch receiver is recessed into the bumper shell for a clean look and maximum ground clearance. The hitch pin is accessed from above or from behind. Since the welding process is out of our hands, these hitch receivers are not rated for on-road towing. They are only intended for hitch mounted accessories such as bicycle racks and for off-road use as a recovery point.

      Price: + NZD$ 85.31

  • 3/4" Recovery Shackle (Pair)
      Choose an option
    • No

      Omits the pair of 3/4" recovery shackles. Your bumper will still come with built in attachment points for the recovery shackles of your choice.

      Price: + NZD$ 0.00

    • Yes

      Adds a pair of 3/4" Recovery shackles. These shackles have a 7/8" diameter pin, black powder coat finish, and rubber isolators to eliminate noise and protect your other recovery equipment

      Price: + NZD$ 51.19

NZD$ 1,110.77 NZD$ 1,110.77 1110.77 NZD

CAD$ 846.30

Add to Cart
"R51 Nissan Pathfinder High Clearance Rear Bumper Kit" has been added to your cart.
description

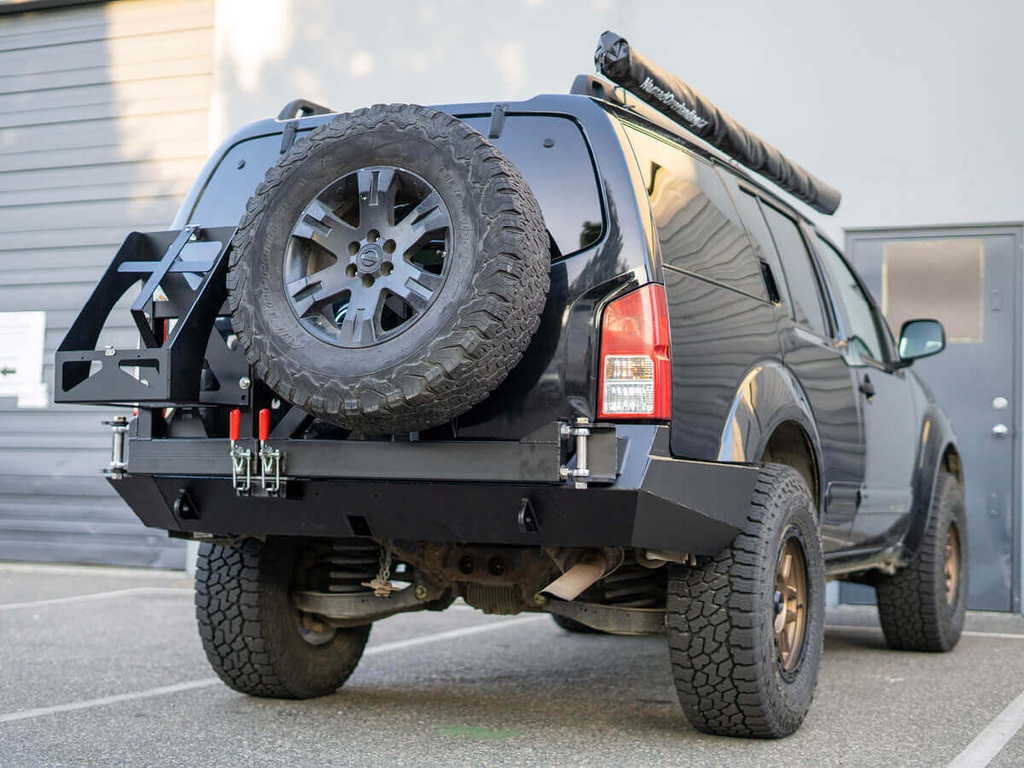

This is a high clearance DIY weld-together rear bumper kit for the R51 generation (2005-2012) Nissan Pathfinder. It features a bolt-on design, recessed 2" receiver hitch, and an excellent departure angle. The 9/16" thick recovery points get welded to the inside and outside of the bumper shell and then bolt directly to the frame for unbeatable strength. The recessed hitch receiver and smooth, sloping rear profile of this bumper eliminate catching points and allow it to easily glide over obstacles rather than hanging up. Simply put, this bumper allows you to forget about departure angle and will substantially improve the offroad capability of your R51 Pathfinder. It offers excellent protection from trail obstacles and distracted drivers and has been kept to a very reasonable weight of 102lbs through careful design work. Especially after factoring in the weight loss of removing your factory bumper and hitch receiver, this bumper will not add a significant amount of weight to your R51 and can even be installed with the stock suspension! However, make no mistake - This bumper has been designed with hard offroad driving in mind and can take a serious beating without skipping a beat.


This bumper has been designed to provide the absolute maximum departure angle and ground clearance for your Pathfinder. The rear profile of the bumper slopes inwards towards the vehicle and hugs the rear of the frame as tight as possible. The main section of this bumper is CNC-bent out of a single piece of  3/16" P&O Steel. This greatly reduces the amount of welding and grinding required by you and makes for a cleaner finished product. If you are paying to have the bumper assembled by a welding shop, this significantly lowers the cost.

The end result is a bumper that features a bolt-on design (minor trimming of a hidden area of the lower body corners required), an optional 2" hitch receiver that is recessed into the bumper shell for maximum clearance and a clean appearance (many people don't even notice its there!), and excellent protection from trail obstacles, trees and inattentive motorists. This bumper comes standard with 9/16" D-ring shackle mounts and is available with surface mount LED pod lights and tabs to mount the lights on top of the bumper or swing outs. To protect the vulnerable rear corners of your Pathfinder, this bumper is available with optional tubing side hoops that will help push your Pathfinder away from trees and rock walls.

Unlike many aftermarket bumpers that are more or less empty shells with minimal reinforcement, this bumper contains extensive internal ribbing and mounts directly to factory holes in the vehicle frame for unmatched strength and stiffness. The bumper side wings are tied directly into the vehicle frame using tubing supports, allowing the side wings to take serious offroad hits without flexing into the vehicle body. With this bumper, you'll be able to tackle challenging trails with a new level of confidence knowing that the rear end of your Pathfinder is well protected.

The ultra low-profile design of this bumper keeps the weight extremely reasonable at 102lbs in steel and 50lbs in aluminum while maintaining excellent strength. This is especially noteworthy when you consider the fact that the factory hitch receiver, frame crossmember and plastic rear bumper all get removed before installing the Coastal Offroad bumper. This means that even with our steel bumper version, the total weight increase to your vehicle is negligible at best. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired

The swing out carriers come in either a single or dual sided configuration and are built to accept a tire up to 37" in diameter. Both carriers include mounting brackets for a hilift jack and other recovery items. The dual swing out includes the hilift mount as well as a lockable jerry can holder designed to fit two 20L NATO style jerry cans. These carriers feature heavy duty chromoly heim joint hinges, locking 2000lb toggle latches, T-handle spring pins, and a replaceable UHMW catch pad that provides secure, rattle free operation. The heim joints in conjunction with the toggle latch provide tons of adjustability, allowing for easy assembly and guaranteed alignment of the carrier latch. The single swing out add-on weighs 34lbs and the dual swing out add-on with gas can holder weighs 77lbs.

  • DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)

  • NEW! - CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product

  • Slim profile is engineered to complement the factory body lines and provide a massive increase in ground clearance and departure angle

  • Heavy duty 3/16" plate steel construction for maximum offroad strength and durability

  • Optional 1/4" 5052 aluminum construction for a lightweight yet very durable overlanding setup (52lb weight savings)

  • Optional LED lights include adjustable mounting tabs to mount the lights either on the swing outs or on top of the bumper

  • Recessed 2" hitch receiver for a clean look and further clearance gains (While the hitch is very well reinforced, we cannot rate it for on-road towing due to the DIY welding nature of this kit)

  • Bolts directly to frame using 6 large factory mounting points for unbeatable strength (no drilling required)

  • Reinforced 9/16" thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles

  • All kits ship as clean, bare metal that is ready to weld out of the box - the Nitrogen laser cutting technology means no cutting edge oxidation and thus easier and stronger welds

  • Optional Single and Dual Swing out carriers with spare tire mount, hilift jack mount and locking dual NATO can holder (dual swing out only)

  • Note for Quarter Panel Protection Hoops Option: There is not enough space to mount the side hoops fully on top of the bumper side wings. Instead, they must be angled outwards and mounted partially on the side faces of the bumper. Please email us for further details if you have any questions regarding this option!


Read more
additionnal information
Body Lift Adjustment (NOT suspension lift)
None | 1" Body Lift | 2" Body Lift | 3" Body Lift
Cree LED Lights
None | Two 24W Cree LED Pod Lights | Two 40W Cree LED Pod Lights | Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch | Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch
Material
Aluminum (+1095) | Steel
Rear Quarter Protection Hoops
No | Yes
Swing Out Carrier
Dual Swing Out Carrier with Dual Gas Can Holder | None | Single Swing Out Carrier
Recessed Hitch Receiver
No | Yes(+65)
3/4" Recovery Shackle (Pair)
No | Yes
bumper weight

Steel base bumper weight: 103lbs

Aluminum base bumper weight: 51 lbs
