Y60 Nissan Patrol High Clearance Front Bumper Kit

Nissan Patrol Y60

Nissan

Nissan Nissan Patrol Y60 CO107444

ID product: 11438

NZD$ 1,030.50

Choose
your variation

  • Body Lift Adjustment (NOT suspension lift)
      Choose an option
    • 1" Body Lift

      The 1" body lift option is only for if you have a 1" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + NZD$ 42.00

    • 2" Body Lift

      The 2" body lift option is only for if you have a 2" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + NZD$ 85.31

    • 3" Body Lift

      The 3" body lift option is only for if you have a 3" body lift installed on your vehicle. If you have any type of suspension lift (coilovers, new shocks and coils, spacer lifts, leveling kits, etc) you will want to select the "no body lift" option.

      Price: + NZD$ 111.56

  • Body Style
      Choose an option
    • Standard/No Flares

      This option refers to your vehicle’s trim level. This bumper version sits about 1" wider than the vehicle body for protection. Choose this if you have no fender flares OR the small SR5 fender flares

      Price: + NZD$ 0.00

    • Large Flares/ +4" (100mm)

      This option refers to your vehicle’s trim level. This bumper version sits about +4" wider than the vehicle body to account for the larger limited fender flares. Choose this if you have the Limited or aftermarket fender flares

      Price: + NZD$ 32.81

  • Cree LED Lights
      Choose an option
    • Two 24W Cree LED Pod Lights

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + NZD$ 115.50

    • Two 40W Cree LED Pod Lights

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + NZD$ 156.19

    • Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + NZD$ 164.06

    • Four 24W Cree LED Pod Lights

      Includes four 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + NZD$ 196.88

    • Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes two 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + NZD$ 207.38

    • Four 24W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes four 24W 2300 Lumen CREE LED Lights with a spot/flood combo beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + NZD$ 275.63

    • Four 40W Cree LED Pod Lights

      Includes four 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Simply splice them into your existing factory fog light wiring for an easy install that keeps your factory fog light switch

      Price: + NZD$ 275.63

    • Four 40W Cree LED Pod Lights with Full Wiring Harness and Switch

      Includes four 40W 3800 Lumen CREE LED Lights with a spot beam pattern and great adjustability. Includes full wiring harness with switch, relay and industry-standard DT connectors

      Price: + NZD$ 358.31

  • Material
      Choose an option
    • Steel

      Our steel bumpers are constructed out of 3/16” thick P&O hot rolled steel, NOT cheaper mild steel. Compared to aluminum, steel provides high strength and durability and is easier to weld. It also comes in at a pricepoint much lower than aluminum

      Price: + NZD$ 0.00

    • 1/4" Aluminum

      Our aluminum bumpers are constructed out of ¼” thick 5052 aluminum. Aluminum provides great corrosion resistance and substantial weight savings over steel. While it is still very strong and durable, it will sustain dents and scratches easier than steel if you like to play hard in the rocks

      Price: + NZD$ 1,260.00

  • Tubing
      Choose an option
    • No

      This gives you a clean, flat-top plate bumper with no tubing hoops in front of the grill or headlights.

      Price: + NZD$ 0.00

    • Grill Tubing

      This gives you a single tubing hoop in front of your grill. This is reinforced with CNC-cut gussets at its base for higher strength and a smoother transition between the bumper and tubing. This option does not include tubing hoops to go around your headlights.

      Price: + NZD$ 102.38

    • Full Height Grill and Headlight Tubing

      This gives you 3 tubing hoops that go in front of the grill and the headlights. To go along with this option, round holes will be pre-cut into your plate bumper top plates for the headlight hoops to pass through. This makes for easier fitment and the ability to weld the tubing to the top and bottom surfaces of your bumper’s side wings for maximum strength. This option gives your vehicle the maximum level of protection from trail obstacles and animal strikes.

      Price: + NZD$ 212.63

  • 3/4" Recovery Shackle (Pair)
      Choose an option
    • No

      Omits the pair of 3/4" recovery shackles. Your bumper will still come with built in attachment points for the recovery shackles of your choice.

      Price: + NZD$ 0.00

    • Yes

      Adds a pair of 3/4" Recovery shackles. These shackles have a 7/8" diameter pin, black powder coat finish, and rubber isolators to eliminate noise and protect your other recovery equipment

      Price: + NZD$ 51.19

NZD$ 1,030.50 NZD$ 1,030.50 1030.5 NZD

CAD$ 785.14

Add to Cart
"Y60 Nissan Patrol High Clearance Front Bumper Kit" has been added to your cart.
description

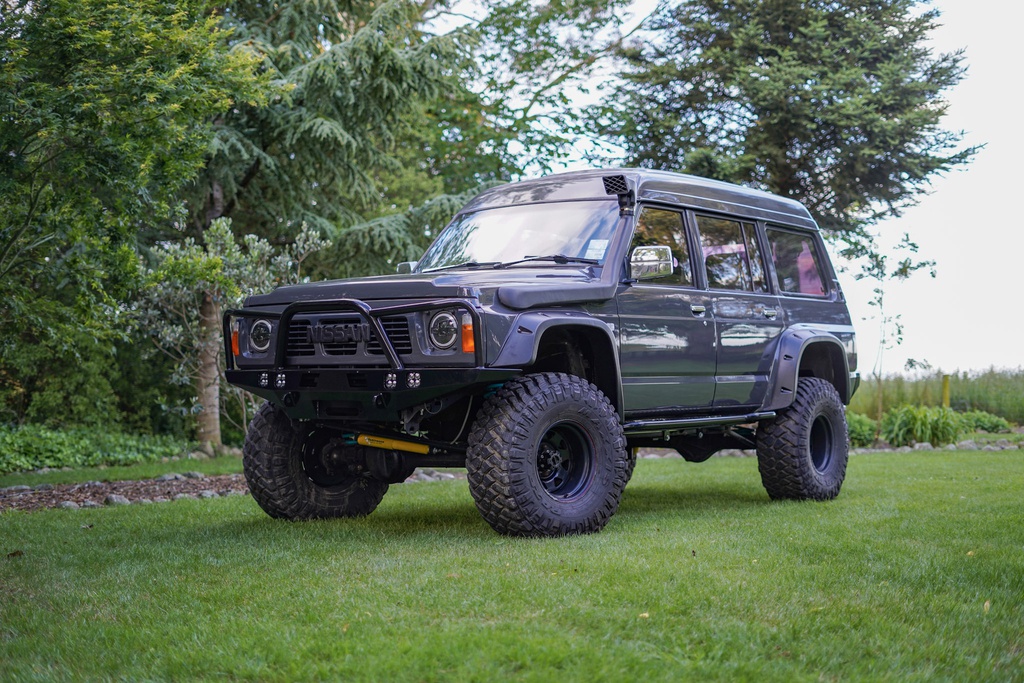

The profile of this bumper has been designed with maximum ground clearance and approach angles put first. The bumper sits as high and tight to the front of the 1987-1997 Nissan GQ Patrol Y60 as possible, while the angled lower faces will smoothly slide over obstacles and ensure you do not get hung up on the trail. The side wings of this bumper wrap around to the front wheel wells and tie directly into the main frame mounting plates for true offroad protection. These side wings will take a serious hit without flexing or deflecting into the vehicle body. We know that most Nissan Patrol owners want to run oversized tires and more aggressive wheel offsets. This can create interference issues with the stock front bumper. We have thought ahead and specifically designed these bumper side wings to easily clear 37" tires. This bumper uses a total of 12 factory mounting points to solidly mount it to the frame. While this is certainly overkill, this distributes impact and winching forces evenly across your frame and makes for the strongest mounting interface of any bumper on the market.

We finished this bumper off with integrated light buckets for surface mount LED pod lights (custom light cut outs available by request), an integrated winch mount to accept all standard 8-12k lb winches with removable solenoids, and heavy duty 9/16" (15mm) thick recovery points that are placed directly in line with the GQ Patrol frame to eliminate any leveraging effects. These recovery points are formed by laser cut steel plates that pass through the bumper shell and bolt directly to the GQ Patrol frame as part of the bumper's main mounting brackets. The recovery points then get welded to the in and outside of the bumper shell. These factors all combine to form recovery points that minimize stress on your GQ Patrol frame and are essentially indestructible! What could make this bumper even better? The low profile design has resulted in very reasonable weights of 66.9 lbs (30.4 kg) for the steel bumper and 33 lbs (15 kg) for the aluminum version. Considering that this bumper replaces your factory bumper and associated components, the resulting weight increase to your GQ Patrol is negligible at best. This minimizes added stress on your vehicle, maintains precious payload capacity, and allows you to keep your factory suspension if desired.

•DIY Weld-together kit - This bumper arrives as precision CNC-laser cut and bent pieces that you then weld together (detailed assembly instructions included)
•CNC-bent plates greatly reduces amount of welding and grinding required by you and makes for a cleaner finished product
•NO modification or welding of the actual vehicle required - this bumper can be installed and removed from your 1987-1997 GQ Patrol without a trace that it was ever there!
•Low profile design is engineered to provide maximum ground clearance and complement the factory body lines - bumper protrudes only 2" (50mm) from center of grill!
•Fits 4 door and 2 door Patrol Models
•Heavy duty 3/16" (5mm) plate steel construction for maximum offroad strength and durability
•Optional 1/4" 5052 aluminum for a lightweight yet very durable overlanding setup (34lb weight savings)
•Bolts directly to frame using a total of 12 factory mounting points
•Protected winch mount fits all standard 8000-12,000lb winches with removable solenoids
•Reinforced 9/16" (15mm) thick clevis mounts allow the use of 3/4" D-Rings and pull directly off of the frame for confident recoveries of heavily loaded vehicles
•Four integrated LED pod mounts – included slotted mounting tabs give tons of adjustment to fit a variety of lights
•Integrated license plate mount
•Optional heavy duty grill and headlight tubing hoops for added protection
•Center-only bumper section is available by special request for those who would like to build their own hybrid tube bumper, please send us an email for more info!

Read more
additionnal information
Body Lift Adjustment (NOT suspension lift)
None | 1" Body Lift | 2" Body Lift | 3" Body Lift
Body Style
Large Flares/ +4" (100mm) | Standard/No Flares
Cree LED Lights
None | Two 24W Cree LED Pod Lights | Two 40W Cree LED Pod Lights | Two 24W Cree LED Pod Lights with Full Wiring Harness and Switch | Four 24W Cree LED Pod Lights | Two 40W Cree LED Pod Lights with Full Wiring Harness and Switch | Four 24W Cree LED Pod Lights with Full Wiring Harness and Switch | Four 40W Cree LED Pod Lights | Four 40W Cree LED Pod Lights with Full Wiring Harness and Switch
Material
1/4" Aluminum | Steel
Tubing
Grill Tubing(+78) | Full Height Grill and Headlight Tubing(+162) | No
3/4" Recovery Shackle (Pair)
No | Yes
bumper weight

Steel base bumper weight: 66.9 lbs (30.4 kg)

Aluminum base bumper weight: 33 lbs (15 kg)
